APPLICATIONS OF HELUKAT® 600IND SIGNAL CABLES

HELUKAT® 600IND signal cables are produced in 3 types with different characteristics. Each cable line is suitable for installation in certain manufacturing industries. In the article, we will provide detailed information about the structure, specifications, and application environment of this cable.

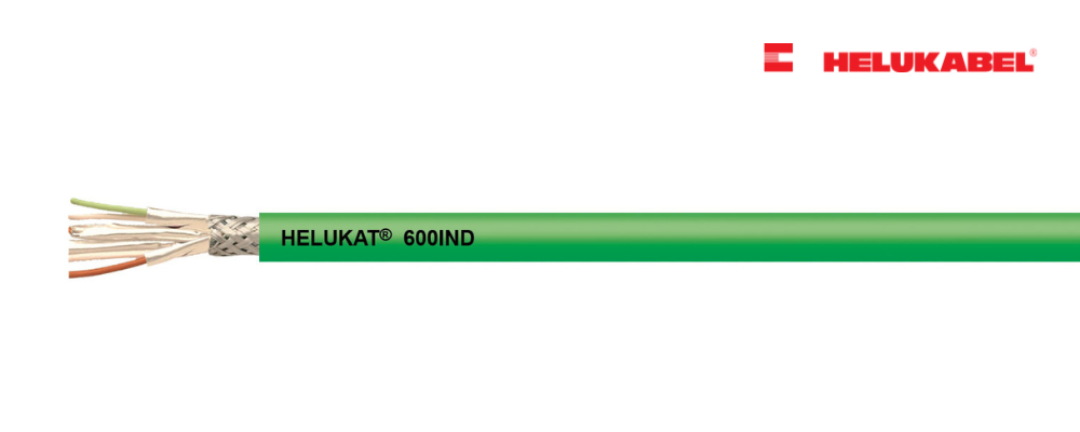

Cable structure S/FTP 4x2xAWG 23/1 PUR

Inner conductor diameter: Copper, bare (AWG 23/1)

Core insulation: Foam-skin-PE

Core colours: wh/bu, wh/og, wh/gn, wh/bn

Stranding element: Double core

Shielding 1: -

Shielding 2: Polyester foil, aluminum-lined

Screen 1 over stranding: Cu braid

Screen 2 over stranding: -

Outer sheath material: PUR

Cable external diameter: app. 8,2 mm

Outer sheath colour: Green similar to RAL 6018

Technical data

Weight: app. 62 kg/km

bending radius, repeated: 85 mm

Operating temperature range min.: -40°C

Operating temperature range max.: +80°C

Caloric load, approx. value: 0,74 MJ/m

Copper weight: 34,00 kg/km

Applications

HELUKAT® 600IND Cat7e Robust is suitable for use in harsh industrial production environments. HELUKAT® 600IND Cat7e Robust has the following characteristics:

• Resistant to kerosene, grease, and machine cooling lubricants

• Good antibacterial and hydrolytic ability.

HELUKAT® 600IND Cat7e is an outstanding signal cable with outstanding performance and high data transmission and storage capacity. HELUKAT® 600IND Cat7e Robust meets the class B interference emission standard according to EN55022.

HELUKAT® 600IND Cat7e Robust is used in the industry providing services such as Gigabit Ethernet, Fast Ethernet, Ethernet, ATM 155, FDDI, Token Ring 4/16 Mbit/s, or ISDN without difficulty.

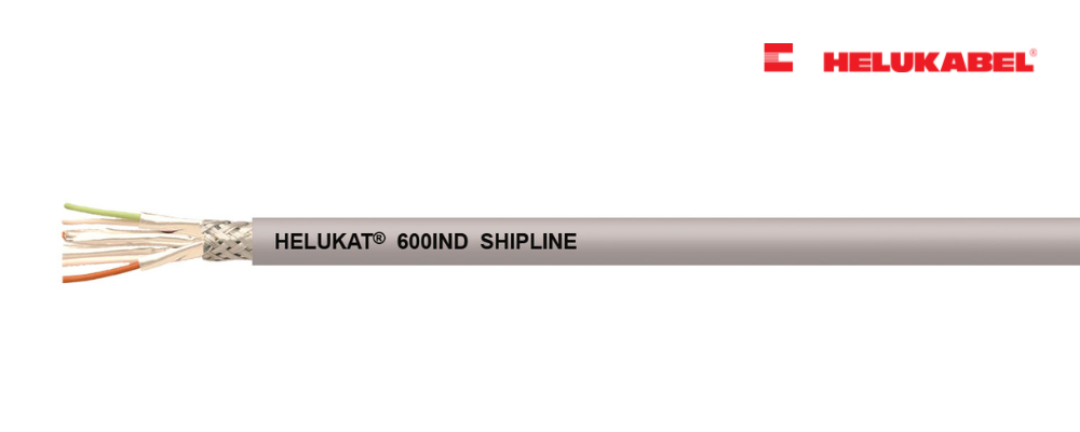

Cable structure S/FTP 4x2xAWG 24/7 (stranded) FRNC

Inner conductor diameter: Copper, bare (AWG 24/7)

Core insulation: Foam-skin-PE

Core colours: wh/bu, wh/og, wh/gn, wh/bn

Stranding element: Double core

Shielding 1: -

Shielding 2: Polyester foil, aluminum-lined

Screen 1 over stranding: Cu braid

Screen 2 over stranding: -

Outer sheath material: FRNC

Cable external diameter: app. 9,1 mm ± 0,3 mm

Outer sheath colour: Grey similar to RAL 7035

Technical data

Weight: app. 85 kg/km

bending radius, repeated: 85 mm

Operating temperature range min.: -20°C

Operating temperature range max.: +75°C

Caloric load, approx. value: 0,80 MJ/m

Copper weight: 36,00 kg/km

Applications

HELUKAT® 600IND Cat 7 Shipline with excellent transmission characteristics, works effectively in the harshest environments. Therefore, it is widely applied in the marine industry, especially in the shipbuilding industry.

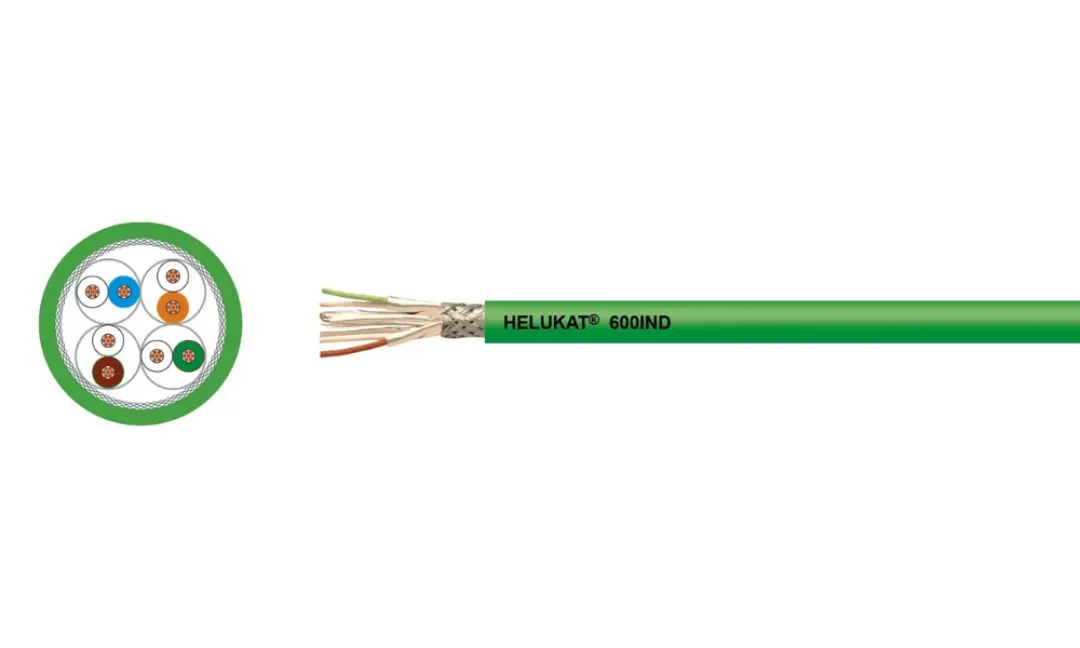

Cable structure S/FTP 4x2xAWG 26/7 PUR

Inner conductor diameter: Copper, bare (AWG 26/7)

Core insulation: Foam-skin-PE

Core colours: wh/bu, wh/og, wh/gn, wh/bn

Stranding element: Double core

Shielding 1: -

Shielding 2: Polyester foil, aluminum-lined

Screen 1 over stranding: Cu braid

Screen 2 over stranding: -

Outer sheath material: PUR

Cable external diameter: app. 6,4 mm ± 0,3 mm

Outer sheath colour: Green similar to RAL 6018

Technical data

Weight: app. 48 kg/km

bending radius, repeated: 64 mm

Operating temperature range min.: -40°C

Operating temperature range max.: +80°C

Caloric load, approx. value: 0,45 MJ/m

Copper weight: 28,00 kg/km

Applications

HELUKAT® 600IND Cat 7 Robust Flex is one of the Ethernet master series. The cable's outer sheath is halogen-free. Therefore, it works effectively in harsh industrial environments. The cable sheath material prevents the cable from corroding and damaging after a period of exposure to high temperatures, liquids, or chemicals. HELUKAT® 600IND Cat 7 Robust Flex is connected to RJ45 plugs (Industrial or office version or 2 plug lines: Sub-D or M12.

In conclusion, for projects that require Halogen-free wiring and often operate in high-temperature or chemical environments, you can choose the HELUKAT® 600IND cable line. For more details and how to choose the right product for your project, please contact our engineers for the best advice!
