TOP 3 POPULAR TYPES OF SIGNAL CABLES IN F&B INDUSTRY

26/07/2022

HELUKABEL VIETNAM

In all areas of industry, there are specific requirements for the selection of suitable cables and wires, especially signal cables. At present, the F&B industry is gradually becoming mainstream, and therefore the cable selection standard is also becoming more complicated.

Signal cables are one of the most widely used cables in the electric cable market today. It plays an important role in ensuring the transmission of signals, sounds, images, data, etc., especially for large power projects in high-rise buildings, commercial centers, factories, etc., enterprises.

CHARACTERISTICS OF SIGNAL CABLES

Below are some standard signal cables at HELUKABEL Vietnam, with resistance to fire, chemical effects (oil vapor, chemicals), physical impact, temperature, and more, thanks to the material sheath, a special PVC sheath. In addition, the core fibers when manufactured are twisted together by small twist steps, creating the flexibility of the cable and allowing it to bend at small bends, which is easy to construct at high, narrow locations where it is difficult to navigate the cable tray.

>>See more: HELUKABEL's communication and audio cables

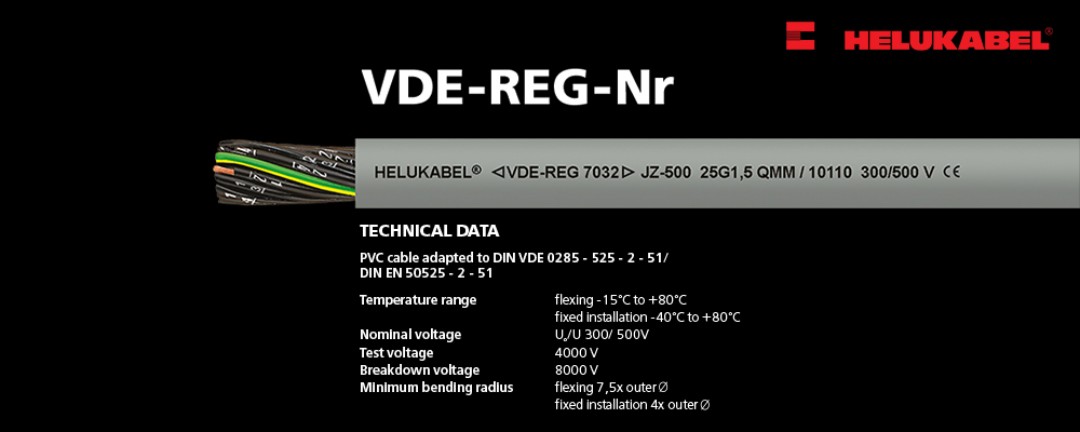

JZ-500 signal cable

This is a signal cable line without shield tape. The wire is designed with a variety of conductors from 1 to 100 cores with cross-sections from 0.5 mm2 to 185 mm2.

Cable structure

Bare copper-conductor, to DIN VDE 0295 cl.5, fine-wire, BS 6360 cl.5, IEC 60228 cl.5

Core insulation of special PVC compound type Z 7225

Core identification to DIN VDE 0293 black cores with continuous white numbering (also available in other colours on request)

GN-YE conductor, 3 cores and above in the outer layer

Cores stranded in layers with optimal lay-length

Outer sheath of special PVC compound type TM2 to DIN VDE 0207-363-4-1/DIN EN 50363-4-1

Sheath colour grey (RAL 7001)

with meter marking

Technical date

Special-PVC control cable adapted to DIN VDE 0285-525-2-51/ DIN EN 50525-2-51

Temperature range	flexing -15°C to +80°C fixed installation -40°C to +80°C
Nominal voltage	Uo/U 300/500V
Test voltage	4000V
Breakdown voltage	min. 8000 V
Insulation resistance	min. 20 MOhm x km
Minimum bending radius	flexing 7,5x cable Ø fixed installation 4x cable Ø
Radiation resistance	up to 80x106 cJ/kg (up to 80 Mrad)

Properties

Oil-resistant, oil-based chemical resistant

Compatible with chain systems

Compatible with torsion condition

The materials used in the production process do not contain cadmium or silicone and do not contain harmful substances that affect the permeability of lacquer.

>>See more: Top benefits of using JZ-500 cables

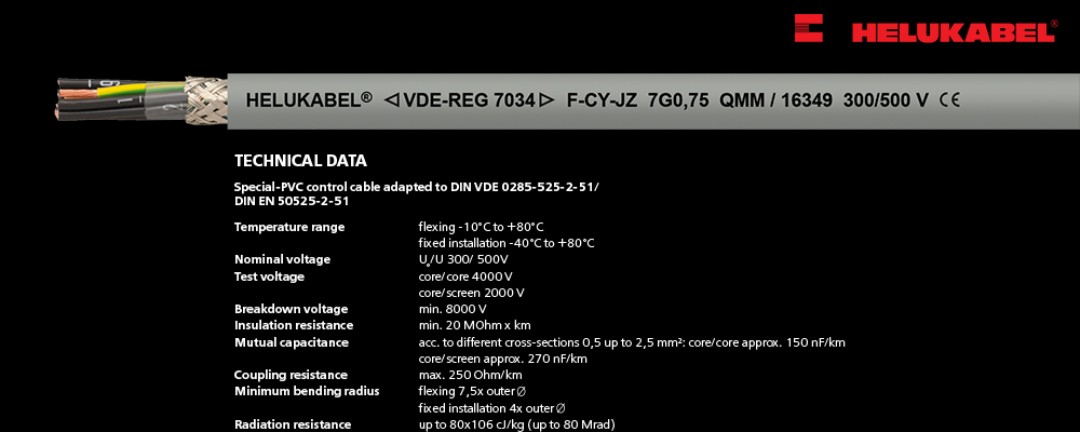

F-CY-JZ signal cable

This cable features a crisscrossed tinned copper anti-interference layer with interference protection coverage up to 85% of the cable surface area. The wire is designed with a variety of conductors from 1 to 100 cores with cross sections from 0.5 mm2 to 50 mm102.

Cable structure

Bare copper-conductor, to DIN VDE 0295 cl.5, fine-wire, BS 6360 cl.5, IEC 60228 cl.5

Core insulation of special PVC compound type Z 7225

Core identification to DIN VDE 0293 black cores with continuous white numbering

GN-YE conductor, 3 cores and above in the outer layer

Cores stranded in layers with optimal lay-length

Foil separator

Tinned copper braided screening, approx. 85% coverage

Outer sheath of special PVC compound type TM2 to DIN VDE 0207-363-4-1/DIN EN 50363-4-1

Sheath colour grey (RAL 7001)

With meter marking

Technical data

Special-PVC control cable adapted to DIN VDE 0285-525-2-51/ DIN EN 50525-2-51

Temperature range	flexing -10°C to +80°C fixed installation -40°C to +80°C
Nominal voltage	Uo/U 300/500 V
Test voltage	core/core 4000 V core/screen 2000 V
Breakdown voltage	min. 8000 V
Insulation resistance	min. 20 MOhm x km
Mutual capacitance	acc. to different cross-sections 0,5 up to 2,5 mm²: core/core approx. 150 nF/km core/screen approx. 270 nF/km
Coupling resistance	max. 250 Ohm/km
Minimum bending radius	flexing 10x cable Ø fixed installation 5x cable Ø
Radiation resistance	up to 80x106 cJ/kg (up to 80 Mrad)

Properties

Oil-resistant, oil-based chemical resistant

The materials used in the production process do not contain cadmium or silicone and do not contain harmful substances that affect the permeability of lacquer.

>>See more: A thorough look into F-CY-JZ cables

Y-CY-JB signal cable

Cable structure

Bare copper, fine wire conductors, bunch stranded to DIN VDE 0295 cl.5, BS 6360 cl.5 and IEC 60228 cl.5

Core insulation of special PVC compound type Z 7225

Core identification to JB/OB colour code

GN-YE conductor, 3 cores and above in the outer layer

Cores stranded in layers with optimal lay-length

Inner sheath of PVC

Tinned copper braided screen, approx. 85% coverage

Outer sheath of special PVC

Sheath colour transparent

with meter marking

Technical data

Special-PVC control cable adapted to DIN VDE 0285-525-2-51/ DIN EN 50525-2-51

Temperature range	flexing -15°C to +80°C fixed installation -40°C to +80°C
Nominal voltage	up to 1,5 mm² U0/U 300/500 V from 2,5 mm² U0/U 450/750 V
Test voltage	4000 V
Breakdown voltage	min. 8000 V
Insulation resistance	min. 20 MOhm x km
Mutual capacitance	acc. to different cross-sections 0,5 up to 2,5 mm²: core/core approx. 150 nF/km core/screen approx. 270 nF/km
Coupling resistance	max. 250 Ohm/km
Minimum bending radius	flexing 10x cable Ø fixed installation 5x cable Ø
Radiation resistance	up to 80x106 cJ/kg (up to 80 Mrad)

At HELUKABEL, we provide electrical connection solutions with a wide range of wire, cable, and accessories of international standards, suitable for all fields. In particular, for the F&B industry, three lines of signal cables, JZ-500, F-CY, and Y-CY-JB, are highly applicable products. If you have any questions about the product or need more specific advice, please contact our specialized engineering!

>>Find out more: Structure and application of Y-CY-JB cables

For more information, please contact:

HELUKABEL® Vietnam

905 Nguyen Kiem, Ward 3, Go Vap District, Ho Chi Minh City 700000, Vietnam

Tel. +84 28 22536441 | info@helukabel.com.vn | www.helukabel.com.vn
