There are many different types of cable glands on the market, in which the HELUTOP® HT series of cable glands manufactured by us, HELUKABEL, have achieved VDE international certification. The product functions to fix cables when connecting to devices, ensuring safety and stable signal transmission in the power system.

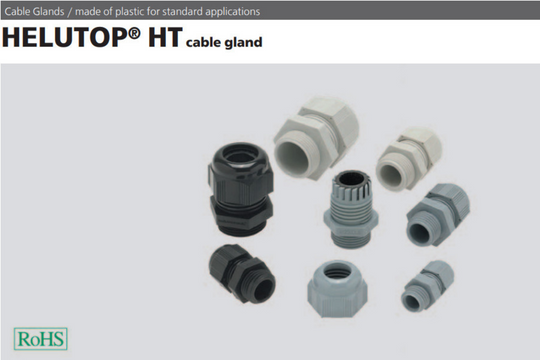

HELUTOP® HT

  • Polyamide PA 6
  • Seal: Chloroprene rubber (CR)

Technical data

Protection class: IP 68 - 5 bar / IP 69K

Temperature range: -20°C up to +100°C

Test standard: EN50262

HELUTOP® HT

Properties

  • Halogen-free
  • Phosphor-free
  • Silicone-free
  • Cadmium-free
  • Optimum strain relief through clamping plates
  • Easy to assemble
  • Large clamping areas

Application

Cable glands protect and fix cables when connecting to equipment, commonly used in applications requiring high tightening, strength, and safety such as:

  • Plant and machine construction
  • Robot construction
  • Automation technology
  • Vehicle construction and shipbuilding
  • Rail technology
  • Installation technology
  • Control cabinet construction

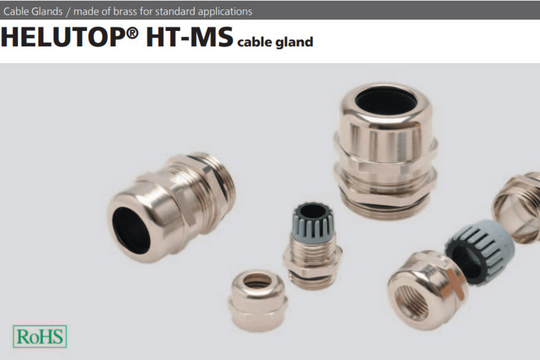

HELUTOP® HT-MS

Having the same properties and applications as the HELUTOP® HT series, the structure is designed with special materials:

  • Brass, Nickel Plated
  • Clamp: Polyamide (PA) 6
  • Seal: Chloroprene rubber (CR)
  • O-ring: NBR

Technical data

  • Protection class: IP 68 - 5 bar / IP 69K
  • Temperature range: -40°C up to +100°C
  • Test standard: EN50262
HELUTOP® HT-MS

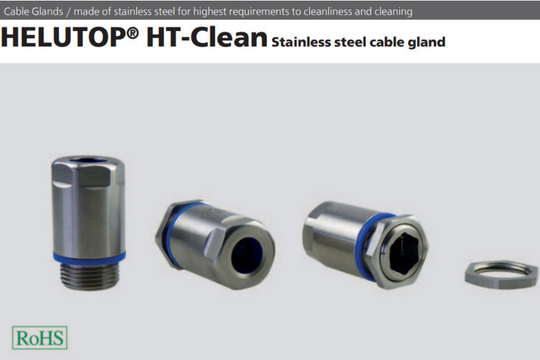

HELUTOP® HT-Clean

Material

Stainless steel 1.4305 / AISI 303

Strain relief: POM

Grommet: TPE according to FDA 21 CFR 177.2600

Technical data

  • Protection class: IP 68-5 bar, 30 min. according to EN 60529; IP 69K according to DIN 40050-9
  • Temperature range: -20°C up to +100°C
  • Temperature range temporary: -40°C up to +150°C
HELUTOP® HT-Clean

Properties

  • The smooth surface prevents to adhere harmful micro-organisms
  • Easy, fast, and less expensive cleaning because of the smooth surface
  • Suitable for high-pressure steam cleaning
  • Resistant against chemical cleaning supplies
  • No threads are exposed
  • High tightness
  • No enter from water and dirt from outside
  • Reliable strain relief due to strain relief element separated from grommet

Application

  • Food industry - milk and meat products
  • Packaging of food machines
  • Beverage industry
  • Pharmaceutical industry
  • Clean room technology
  • Biotechnology
  • Chemical industry

At HELUKABEL, we provide a wide range of solutions for electrical connection technology in many different fields. Wires, cables, and accessories at HELUKABEL have been designed to suit many applications in factories. Furthermore, we can provide customized solutions for customers, meeting the technical requirements set by the customer. Please contact our engineers if you need advice and support!
