HELUKAT 600IND | CONTROL CABLE GROUP IN INDUSTRIAL COMMUNICATION NETWORKS

A control power cable is a suitable choice for stable transmission of data, information, or signals at optimum speed. The HELUKAT 600IND cable, with its own application characteristics in each specific environmental condition, allows the operation of equipment and machinery systems with the least number of obstacles.

Application

The HELUKAT® 600IND Cat 7e Robust control cables are used for industrial applications in harsh environmental conditions. With stable mechanical properties, they are resistant to mineral oils, fats, and coolant lubricants. In addition, they are also resistant to bacteria and hydrolysis.

In the field of electronics, they are characterized by large performance reserves and outstanding performance that enables deployment of services such as Gigabit Ethernet, Fast Ethernet, Ethernet, ATM155, FDDI, Token Ring 4/16 Mbit/s or ISDN without difficulty. This type of control cable exceeds the requirements for EN55022 Class B emissions and EN5502 immunity and therefore has a high electromagnetic compatibility characteristic.

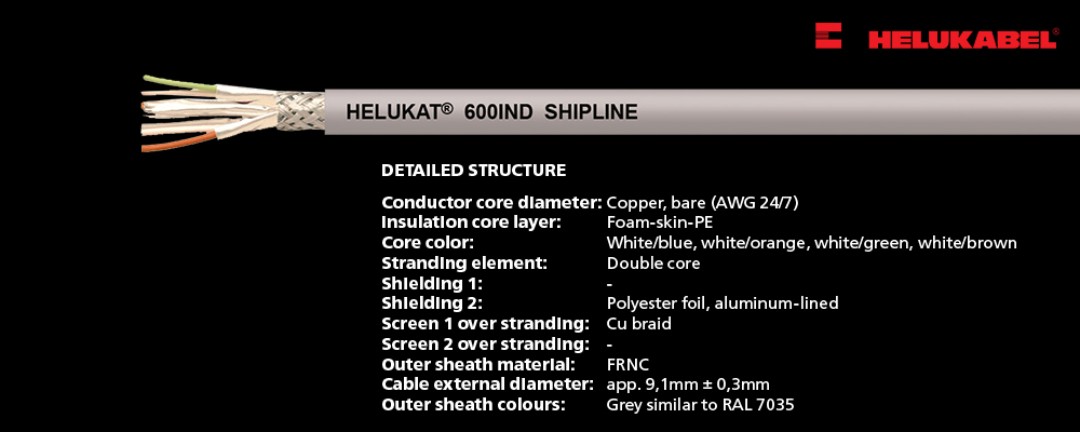

Detailed structure

• Conductor core diameter: Copper, bare (AWG 24/7)

• Insulation core layer: Foam-skin-PE

• Core color: White/blue, white/orange, white/green, white/brown

• Stranding element: Double core

• Shielding 1: -

• Shielding 2: Polyester foil, aluminum-lined

• Screen 1 over stranding: Cu braid

• Screen 2 over stranding: -

• Outer sheath material: FRNC

• Cable external diameter: app. 9,1mm ± 0,3mm

• Outer sheath colours: Grey similar to RAL 7035

Application

The HELUKAT® 600IND Cat 7 shipline cable is designed to be flexible and specific to marine and offshore industries such as shipbuilding, and is particularly suitable for Ethernet applications. It ensures good transmission characteristics and can be used even under the harshest conditions. The cable is certified by German Lloyd.

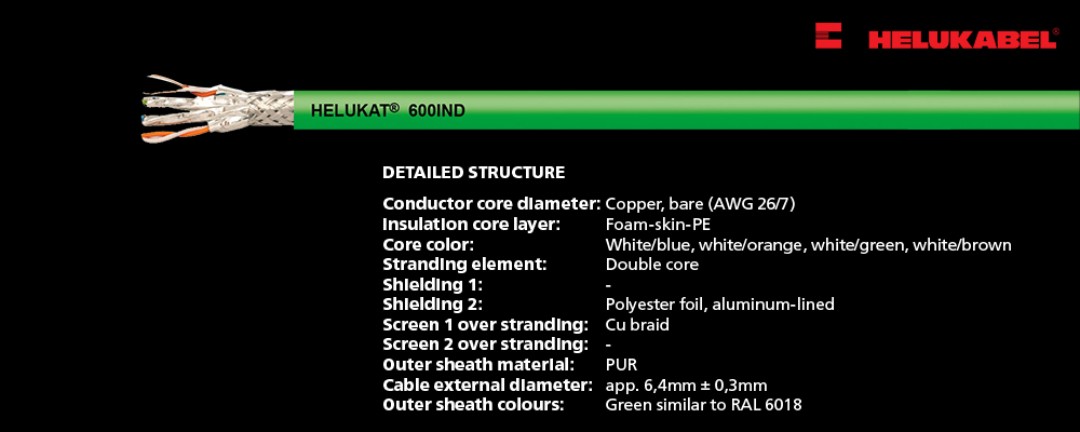

Detailed structure

• Conductor core diameter: Copper, bare (AWG 26/7)

• Insulation core layer: Foam-skin-PE

• Core color: White/blue, white/orange, white/green, white/brown

• Stranding element: Double core

• Shielding 1: -

• Shielding 2: Polyester foil, aluminum-lined

• Screen 1 over stranding: Cu braid

• Screen 2 over stranding: -

• Outer sheath material: PUR

• Cable external diameter: app. 6,4mm ± 0,3mm

• Outer sheath colours: Green similar to RAL 6018

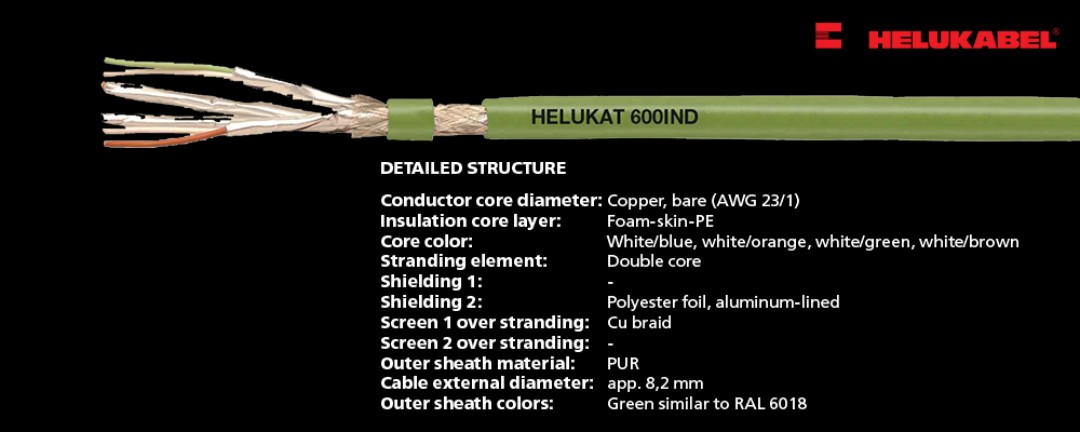

Application

The HELUKAT® 600IND Cat 7 Robustflex cable is an Ethernet cable that, thanks to its use of a halogen-free PU outer sheath, is ideal for harsh industrial environments. This cable can be configured with regular RJ45 plugs (industrial and office versions), as well as with some Sub-D and M12 plugs.
